| Used to compact 40mm x 40mm x 160mm cement mortar prisms in the three gang mould. The table consists of a platform holding the mould, seated on a rotating cam driven at 60 revolutions per minute. The jolting group is connected to the table by bayonet joints for quick checking of the weights. The150mm drop height is adjustable to maintain it after intensive use.
The table is supplied with a separate control panel with main switch, automatic digital drop counter and start/stop button. |
|
| Power supply: 220-240V 50Hz 1ph 500 W Dimensions: 1000mm x 380mm x 420mm Weight: 65kg |
|

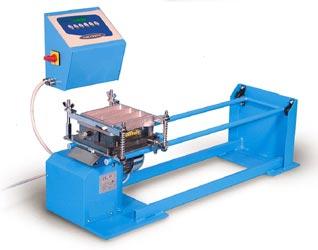

| Image shows table with mould and hopper. Mould and hopper are available separately. |
