Computerized Auto Cube Compression Test Machine

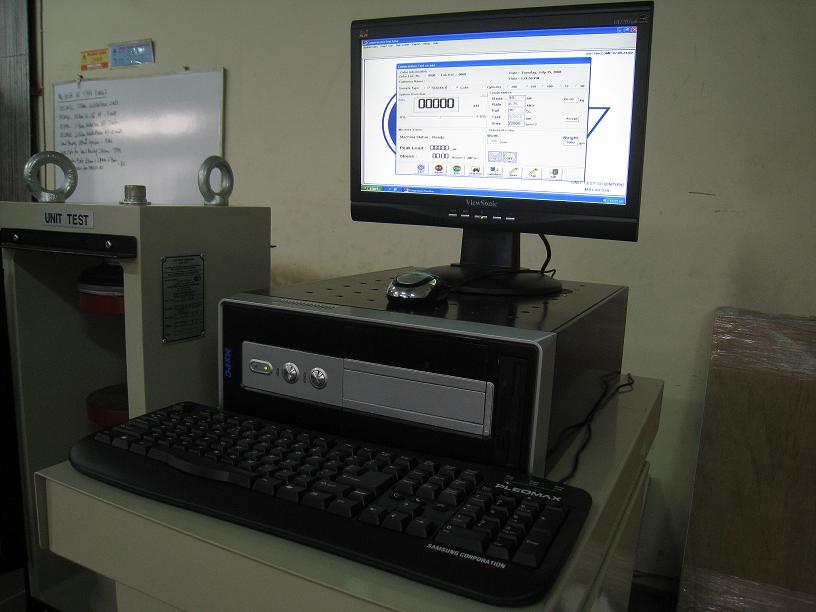

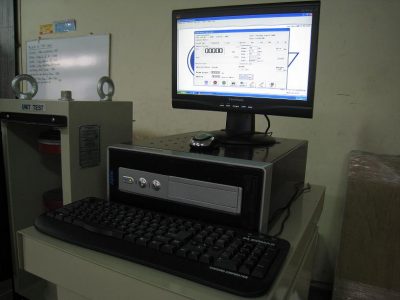

The Computerised Automatic Control Unit (Console) do not require Unit Test digital readout unit, but have a special logical data hardware card installed inside the P.C or Computer which are an integral part of system, and can feed back all the test information from the main machine frame and control the testing accordance to the Standard requirement. Also, all the test parameter and general information can be put in by the user and display or printed out the test report. The computerised automatic console unit can be fitted to all Unit Test compression test machine, 1500, 2000, 2500, 3000 and 4000kN capacity.



General Information

l  Large display computer 15” CRT monitor either built-in the console or separate unit

l  All parameter such as specimen size, date, pace rate, real time, density (kg/m3), customer name, project site, or any information can be entered by using standard QWENTY key board and optional mouse.

l  Information and test result can be stored in data base which can be access at anytime

l  Test parameter can be display in kN, lbf or kgf associated in mm or inches

l  Program software is user friendly with numerous search options for easy and quick access to data.

l  Unlimited test data storage which can be access for view and print out either in list format or as individual full test report format.

l  Standard built-in 2 ranges – Compression range and Flexural range

Special built in 3 Channel Compression / Flexural Concrete, Cement, Test

l  X-Y Graphic display for kN or kgf against Time(s) or deformation (mm) or stain gauge measurement (optional)

l  X-Y Graphic display for kN or kgf against deformation (mm) or stain gauge measurement (optional).



Model Available:



CUT 150/EL  1500kN Computerised Automatic Compression Test Machine

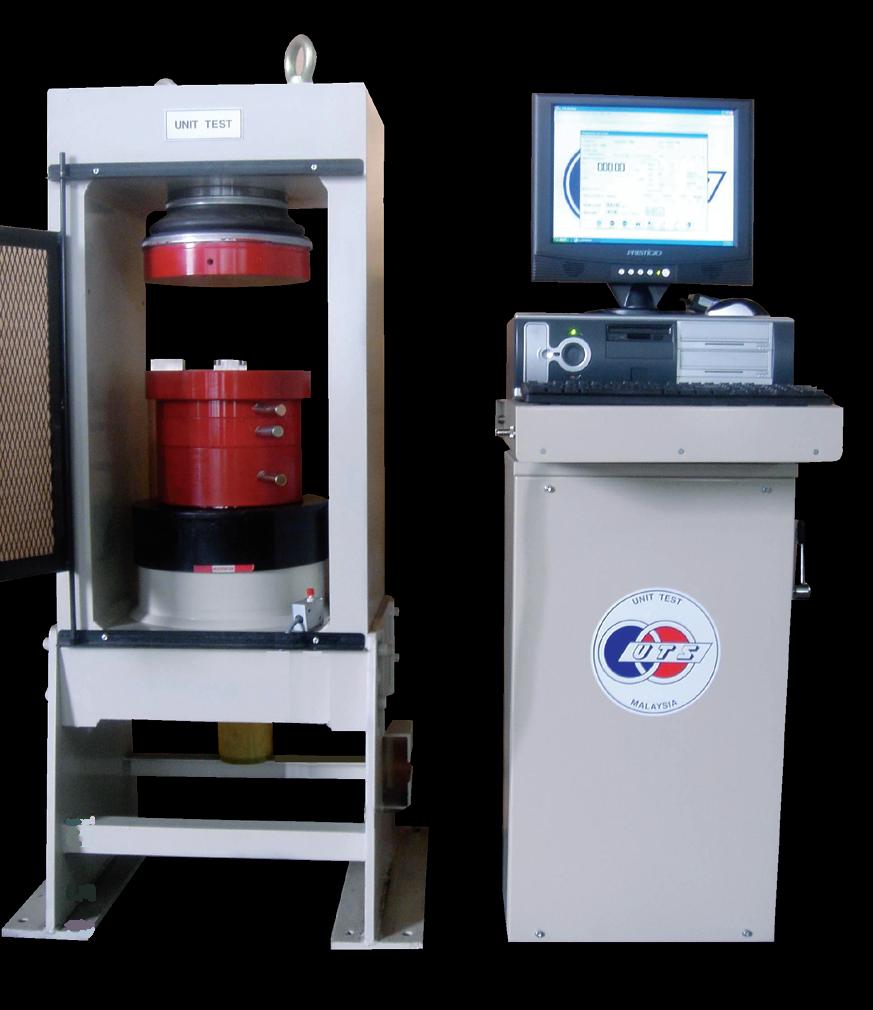

CUT 200/EL  2000kN Computerised Automatic Compression Test Machine

CUT 250/EL  2500kN Computerised Automatic Compression Test Machine

CUT 300/EL  3000kN Computerised Automatic Compression Test Machine
