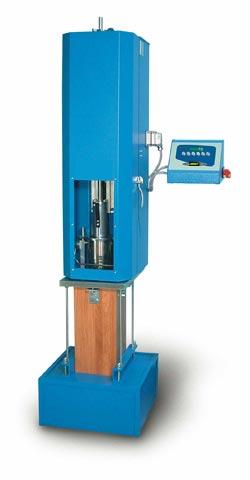

Automatic Marshall Compactor

This unit automatically compacts the specimen and comes to a stop when the pre-set number of strokes set on the automatic digital display counter has completed.

The trip mechanism ensures that the sliding hammer falls from the same height for every blow into the mould, which is held in position by a clamping device.

The compactor includes a laminate hardwood block mounted on a vibrated concrete base.

Compaction moulds must be ordered separately.


Sliding hammer weight: 4535 ± 15 g
Free fall height: 457 ± 5 mm
Blow frequency: 50 blows in 55/60 seconds
Power supply: 230V 50Hz 1ph – 750 W
Dimensions: 500 x 500 x 1890 mm
Weight: 220 kg


The machine is equipped with safety door, conforming to CE Safety Directive. If the door is open the machine stops and will not operate.


All moving parts are quickly/easily accessible for maintenance.
